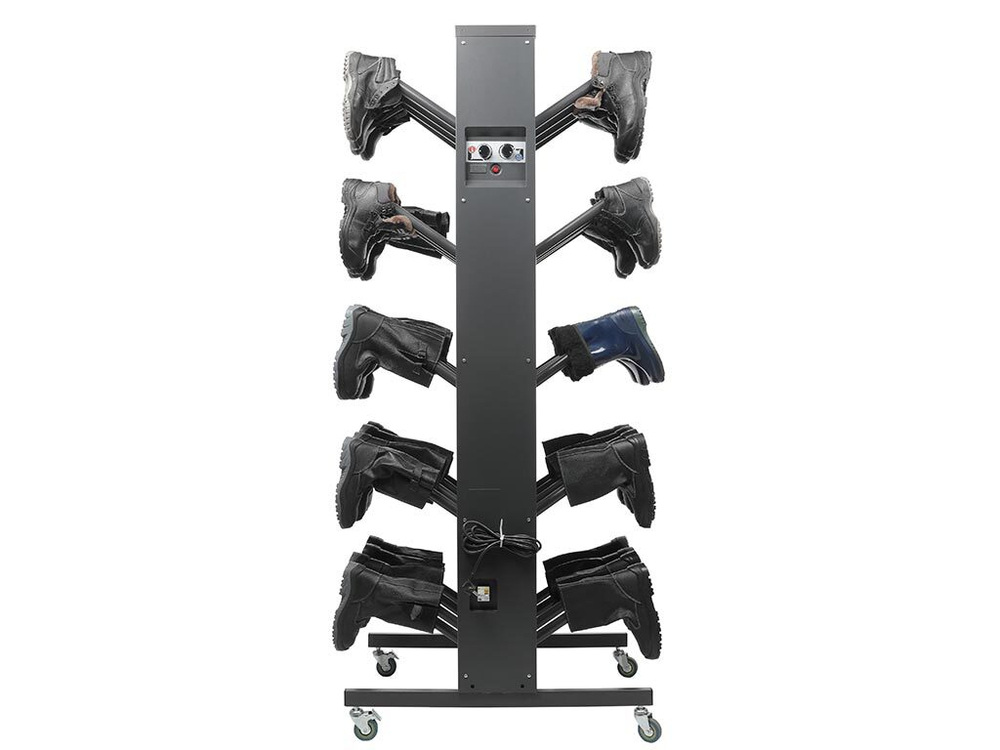

Drying rack Nord 20

The principle of operation is to force warm air into the shoe through the nozzles. Wet shoes are hung on brackets located on the rack housing through which warm air is supplied. Thus, air convection occurs directly in the inner part of the boot, which significantly speeds up the drying process. Each shoe socket is equipped with an inertial valve that shuts off the air supply if the shoe is not worn.

Main advantages:

• Rigid welded construction.
• The bactericidal ultraviolet lamp disinfects footwear and promotes elimination of an unpleasant smell.
• For ease of movement, the rack is equipped with rubber wheels, diameter 75 mm (2 swivel wheels with a stopper, 2 swivel wheels).
• Supplied unassembled (two pieces).

Main technical characteristics:

• Voltage 220 V
• Drying type - ventilated, air heated
• Power consumption, max 2680 W
• Control type - mechanical
• Frequency 50 Hz
• Drying time timer up to 4 hours
• Power of heating elements, max 2260 W
• The maximum heating temperature is up to 70°C in the system, at the outlet of the nozzles up to 40°C
• Fan performance - 360 x 2 m3 / h
• Germicidal lamp - lamp power 15 W
• Power cable length - 4 m
